LVD Configurable
$45.95
Low Voltage Disconnect with configurable power rating and control signals
Remote Control
Remote ON: Input; keep LVD connected when signal is connected to ground.
Remote OFF: Input; disconnect when signal is connected to ground.
ALARM: Output; 80mA or 1 A current sinking capability for alarm devices
GND: Connected to power GND inside the unit. It provides an easy ground access for wiring remote ON/OFF signals.
When both remote ON and remote OFF signals are active, LVD will ignore the signals.
For more information including notes, please refer to User's Manual.

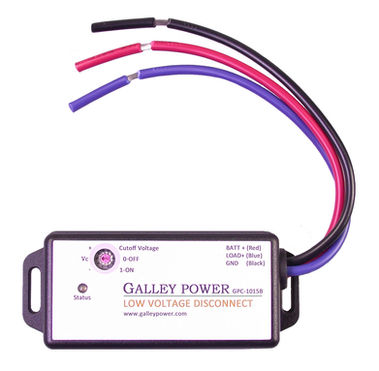

The GPC LVD module is a microcontroller‐based solid‐state low voltage disconnect load switch. It prevents battery from over‐discharge by disconnecting the attached load if the battery voltage drops below a pre‐defined threshold. It reconnects the load when the battery is recharged above the threshold.
The table in the image gallery above lists standard threshold options.
If other threshold values are preferred, please add the requirements in the note when placing the order.
Features
Ultra‐low pass‐through resistance: 4.5mΩ for 20A version; 2.2mΩ for 20A version
Ultra‐low standby current 0.26mA (12V Version)
Automatic 12V/24V battery detection
Rotary switch provides 10 threshold options
Two selector options: flushed for easy access with water-proof; recessed for better setting protection
Continuous current: 20A or 30A
Red‐Green dual color LED display for battery monitoring and fault reporting
Low noise and low interference by Solid‐state switch
Complete protections including input over‐voltage, under‐voltage protection, over‐temperature, over‐load detection, and reverse polarity (with external inline fuse)
Extensive options for alarm output, relay drive, remote on/OFF control and temperature sensing/compensation
Ambient operating temperature: -40~55 °C
1-year limited warranty
