Ultra‐low pass‐through impedance 4.5mΩ
Ultra‐low standby current 0.26mA (12V Version)
Automatic 12V/24V battery detection
Rotary switch provides 10 threshold options
Two selector options: GPC-1005B-F, flushed for easy access; GPC-1005B-R, recessed for better setting protection
Continuous current up to 20A

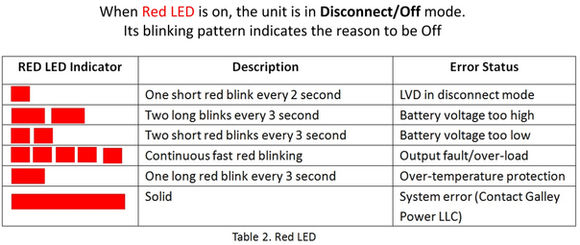

Red‐Green dual color LED display for battery monitoring and fault reporting
Low noise and low interference by Solid‐state switch
Comprehensive protections including input over‐voltage, under‐voltage protection, over‐temperature, over‐load detection, and reverse polarity (with external inline fuse)
Extensive options for alarm output, relay drive, remote on/OFF control and temperature sensing/compensation
Ambient operating temperature: -40~55 °C

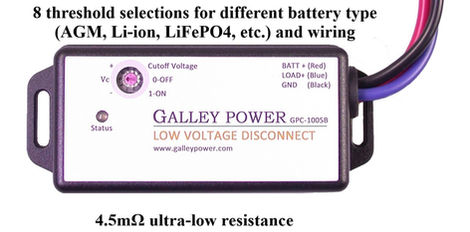

GPC-1005B-R - Low Voltage Disconnect with recessed selector, 12V/24V Auto Detect

$45.95
