Isolated I2C/SMBus 4x Multiplexer
$80.92
Isolated I2C/SMbus multiplexer, 1-of-4 isolated, self powered channels
GP9546A is an isolated quad bidirectional I2C/SMBus multiplexer kit with enhanced ESD capability operating on a single 5V power.
On the primary side, the connections go to on-board 1-to-4 I2C switch's SCL, SDA and /RESET so a host controller can select the I2C/SMBus channel. The 5V power input will power the whole boards including the isolated power to the secondary sides.
On the secondary sides, all four I2C/SMBus channels are isolated. With on-board power, no external power is needed for the secondary sides.

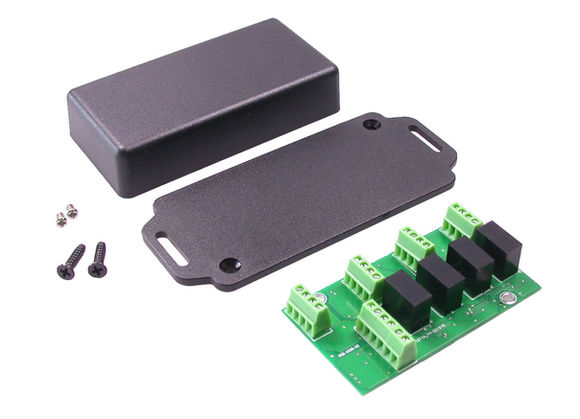

GP9546A is designed as a development kit with a mounting case. The user can install the board in the case with mounting screws. The user can drill wire egress holes based the application requirements.
For the standard module, the signal voltage is 3.3V. 5V option is available upon request.
GP9546A kit is an ideal tool for renewable energy applications where multiple apparatus with identical I2C address is utilized. For example, it can be used for monitoring multiple BB-2590's with SMBus. Its isolation allows it to be used to break ground loop and improve signal robustness.
Features
1-to-4 isolated, self powered I2C/SMBus isolator
Active-low reset input
Eight I2C address option (0x70~0x77)
Options with and without built-in pull-up resistors
Up to 400kHz operation
Enhanced ESD protection
Connector #0 ~ #3 (4-pin terminal block) - Secondary side
Pin 1: 5V#x, output
Pin 2: SCLx
Pin 3: SDAx
Pin 4: Ground return for 5V#x at Pin 1
(x=0,1,2,3)
Connector #4 (6-pin terminal block) - Primary side
Pin 1: 5V, input
Pin 2: SCL
Pin 3: SDA
Pin 4: /RESET
Pin 5: 3.3V (internal 3.3V, reserved)
Pin 6: Ground return for 5V at Pin 1
