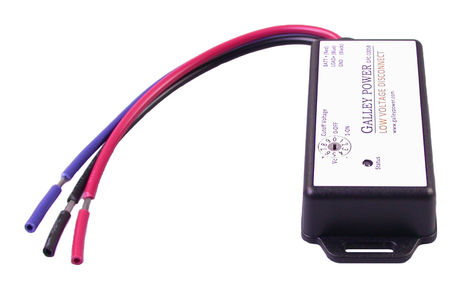

GPC-1005B-F - LVD with Flushed Selector, Water-proof
$97.95
20A continous, 12V/24V auto select low voltage disconnect
Water-proof (IP-67)
The GPC LVD module is a microcontroller‐based solid‐state low voltage disconnect load switch. It prevents battery from over‐discharge by disconnecting the attached load if the battery voltage drops below a pre‐defined threshold. It reconnects the load when the battery is recharged above the threshold.

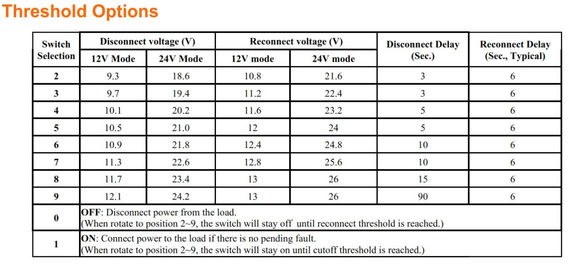

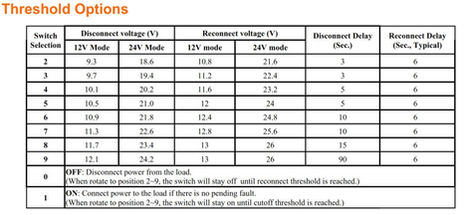

The table in the image gallery above lists standard threshold options.
If other threshold values are preferred, please add the requirements in the note when placing the order.
Features
Ultra‐low pass‐through impedance 4.5mΩ
Ultra‐low standby current 0.26mA (12V Version)
Automatic 12V/24V battery detection
Rotary switch provides 10 threshold options
Two selector options: GPC-1005B-F, flushed for easy access, water-proof; GPC-1005B-R, recessed for better setting protection
Continuous current up to 20A

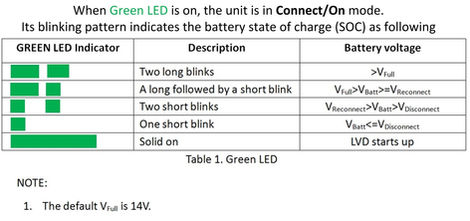

Red‐Green dual color LED display for battery monitoring and fault reporting
Low noise and low interference by solid‐state switch
Comprehensive protections including input over‐voltage, under‐voltage protection, over‐temperature, over‐load detection, and reverse polarity (with external inline fuse)
Extensive options for alarm output, relay drive, remote on/OFF control and temperature sensing/compensation
Ambient operating temperature: -40~55 °C
1-year limited warranty
